Tac41 Lite Cheek Comb Kit
Right handed kits are in stock ready to ship!
(Left handed kits will be made to order - please allow 1-2 days extra for manufacture)
The Tac 41 Lite Cheek Comb kit adds the vital support required when looking down rifle optics. With 30mm of vertical adjustment, this kit allows full customisation for a huge range of optics and mount heights. Manufactured from high quality carbon reinforced polymer, the kit not only is robust, but is also sleek in matte black. The kit includes:
1x Cheek comb
1x Comb Mount
1x Comb Clamp
Assembly Hardware.
Information for assembly
The kit ships assembled. To fit, first remove the 2 M5×12 comb retaining screws followed by the 4x M3×20 countersunk screws.
Add both the mount and clamp to the stock, taking note of the wider end of each part which faces toward the rear. The mount fits onto the LHS of the stock.
Clamp the two halves together with the 4x M3×20 screws. Excessive torque is NOT required.
Add the comb to the mount. Fit the 2x M5×12 Screws and washers to the comb.
Set the height of the comb to preference.
Nip the 2x M5 comb screws. Excessive torque is NOT required due to the textured surface of the mounting face.
Note - Listing is for one kit only.

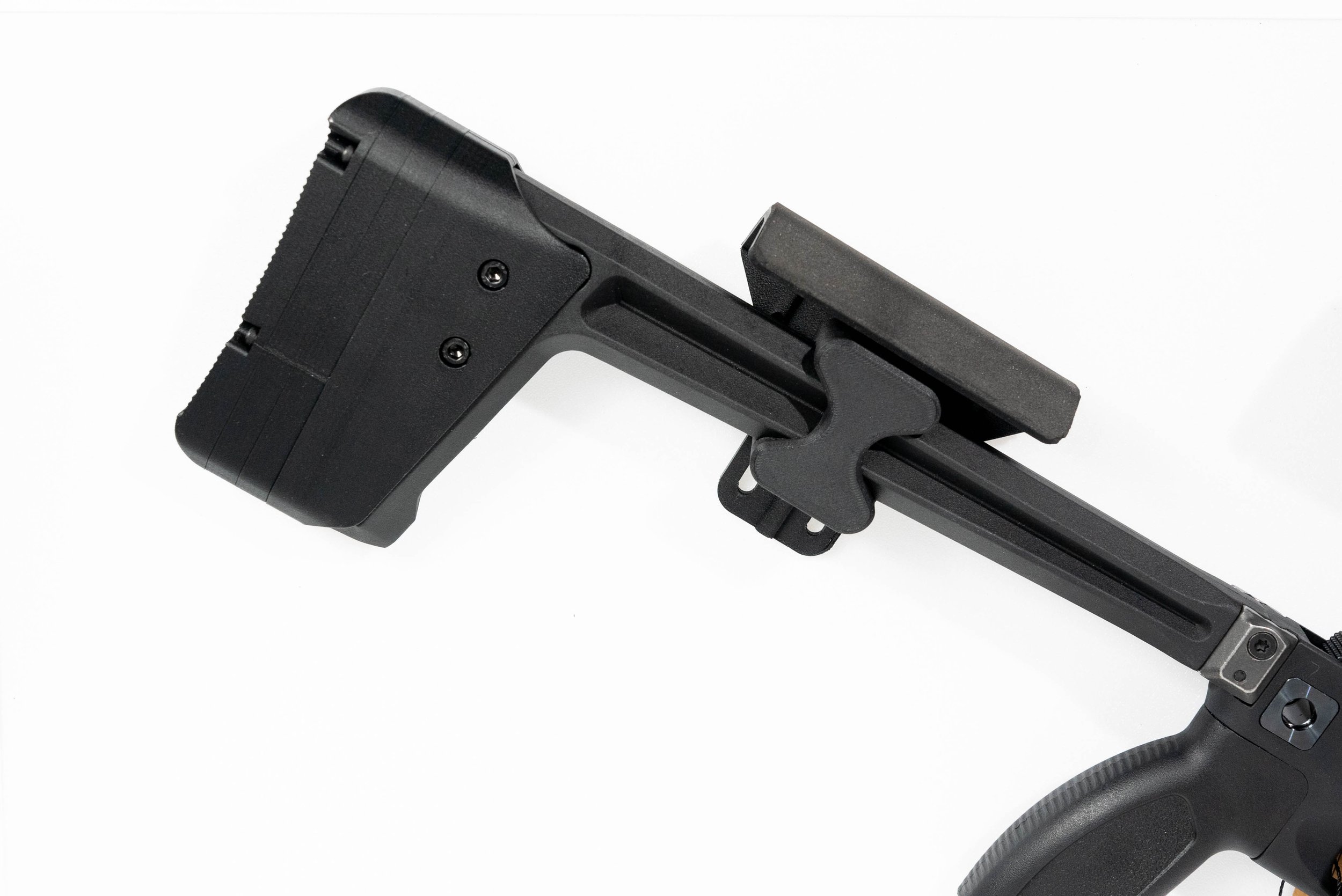

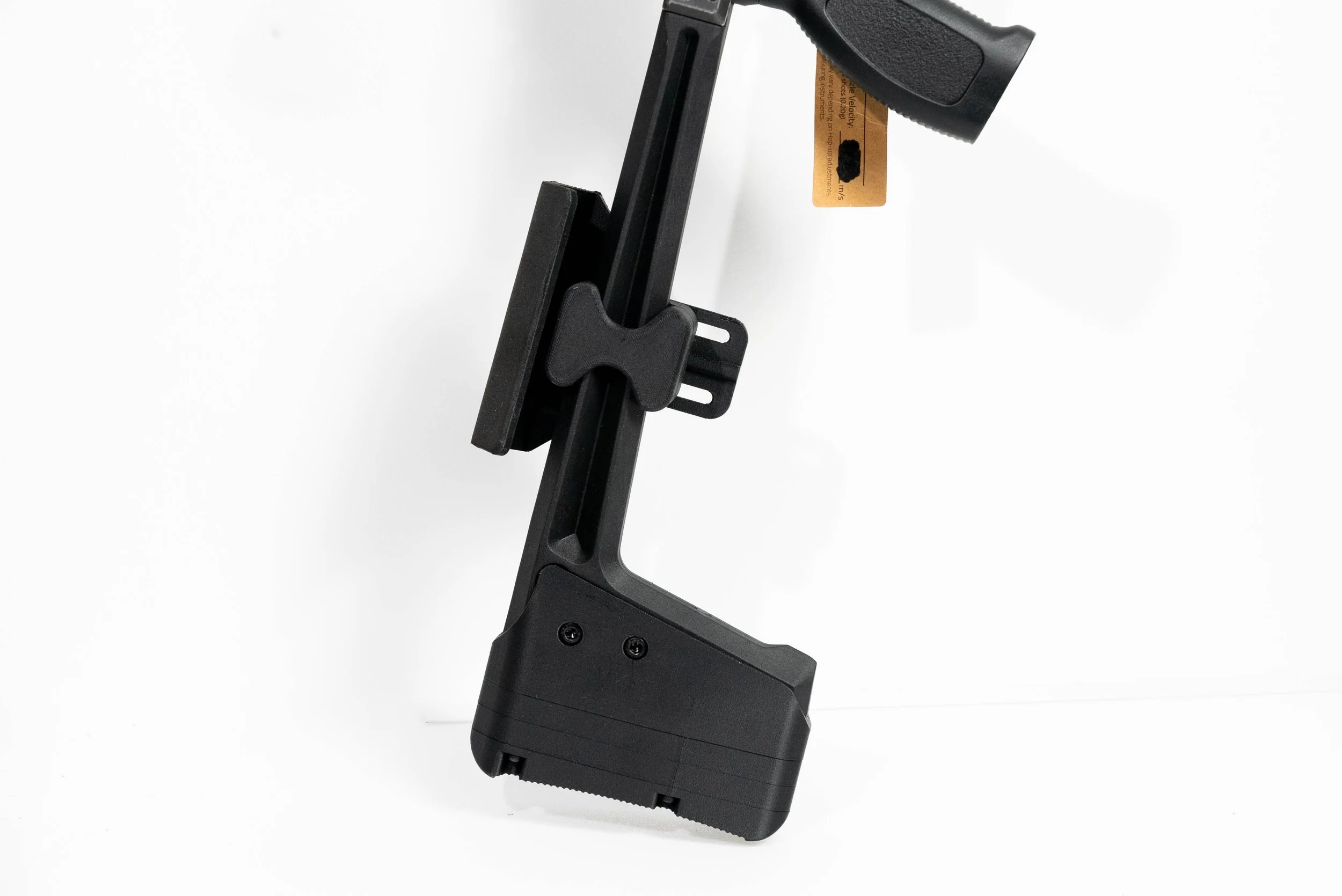

Select Comb Direction - Right Handed is shown in the product images. Left handed is a mirror of the right hand part, just for left handed operators.
