Tac 41 Lite Butt Pad Extension Kit
Kits are now in stock ready to ship!

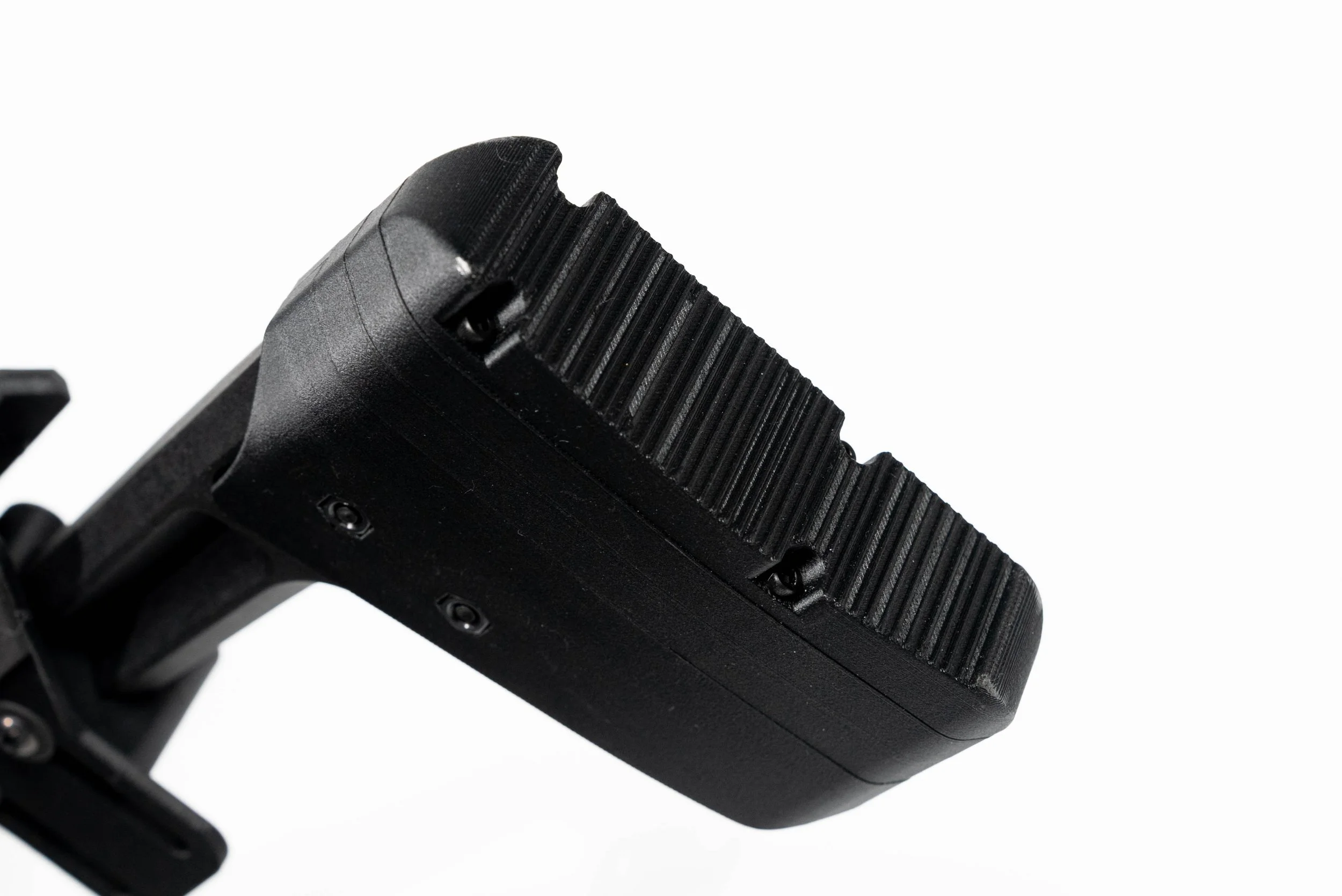

The Tac 41 Lite Butt Pad Extension Kit adds between 15 to 35mm of customisable length in a sleek, low-profile package which is in keeping with the existing stock aesthetics. Made from high performance carbon reinforced polymer, the kit not only performs, but looks the part as well in matte black. The kit includes:
2x Mounting clamps
2× 10mm spacers
1x Ridged Butt Pad
Hardware for assembly
Information for assembly
The kit will ship assembled. To fit, remove the 4x retaining screws from the rear of the assembly. Then remove the 2x M5 bolts from the clamping pieces.
Fit the clamps into position and tighten the screws (touch tight, these will be tightened further later).
Choose number of spacer inserts (0-2). For no inserts, use the 4x M3×12 screws. For 1-2 inserts, use the 4x M3×30 screws.
Tighten 4x rear screws to touch tight.
Align all the spacers and clamps
Tighten 4x rear screws. Excessive torque is NOT Required.
Tighten 2x clamp screws. Excessive torque is NOT required.
