Tac 41 Lite Butt Pad + Cheek Comb Combo
Right handed kits are ready to ship!
(Note LH kits will be made to order - please allow 1-2 days extra for manufacture prior to dispatch)
Butt Pad Extension Kit
The Tac 41 Lite Butt Pad Extension Kit adds between 15 to 35mm of customisable length in a sleek, low-profile package which is in keeping with the existing stock aesthetics. Made from high performance carbon reinforced polymer, the kit not only performs, but looks the part as well in matte black. The kit includes:
2x Mounting clamps
2× 10mm spacers
1x Ridged Butt Pad
Hardware for assembly
Information for assembly - Butt Pad
The kit will ship assembled. To fit, remove the 4x retaining screws from the rear of the assembly. Then remove the 2x M5 bolts from the clamping pieces.
Fit the clamps into position and tighten the screws (touch tight, these will be tightened further later).
Choose number of spacer inserts (0-2). For no inserts, use the 4x M3×12 screws. For 1-2 inserts, use the 4x M3×30 screws.
Tighten 4x rear screws to touch tight.
Align all the spacers and clamps
Tighten 4x rear screws. Excessive torque is NOT Required.
Tighten 2x clamp screws. Excessive torque is NOT required.
Cheek Comb
The Tac 41 Lite Cheek Comb kit adds the vital support required when looking down rifle optics. With 30mm of vertical adjustment, this kit allows full customisation for a huge range of optics and mount heights. Manufactured from high quality carbon reinforced polymer, the kit not only is robust, but is also sleek in matte black. The kit includes:
1x Cheek comb
1x Comb Mount
1x Comb Clamp
Assembly Hardware.
Information for assembly - Cheek Comb
The kit ships assembled. To fit, first remove the 2 M5×12 comb retaining screws followed by the 4x M3×20 countersunk screws.
Add both the mount and clamp to the stock, taking note of the wider end of each part which faces toward the rear. The mount fits onto the LHS of the stock.
Clamp the two halves together with the 4x M3×20 screws. Excessive torque is NOT required.
Add the comb to the mount. Fit the 2x M5×12 Screws and washers to the comb.
Set the height of the comb to preference.
Nip the 2x M5 comb screws. Excessive torque is NOT required due to the textured surface of the mounting face.

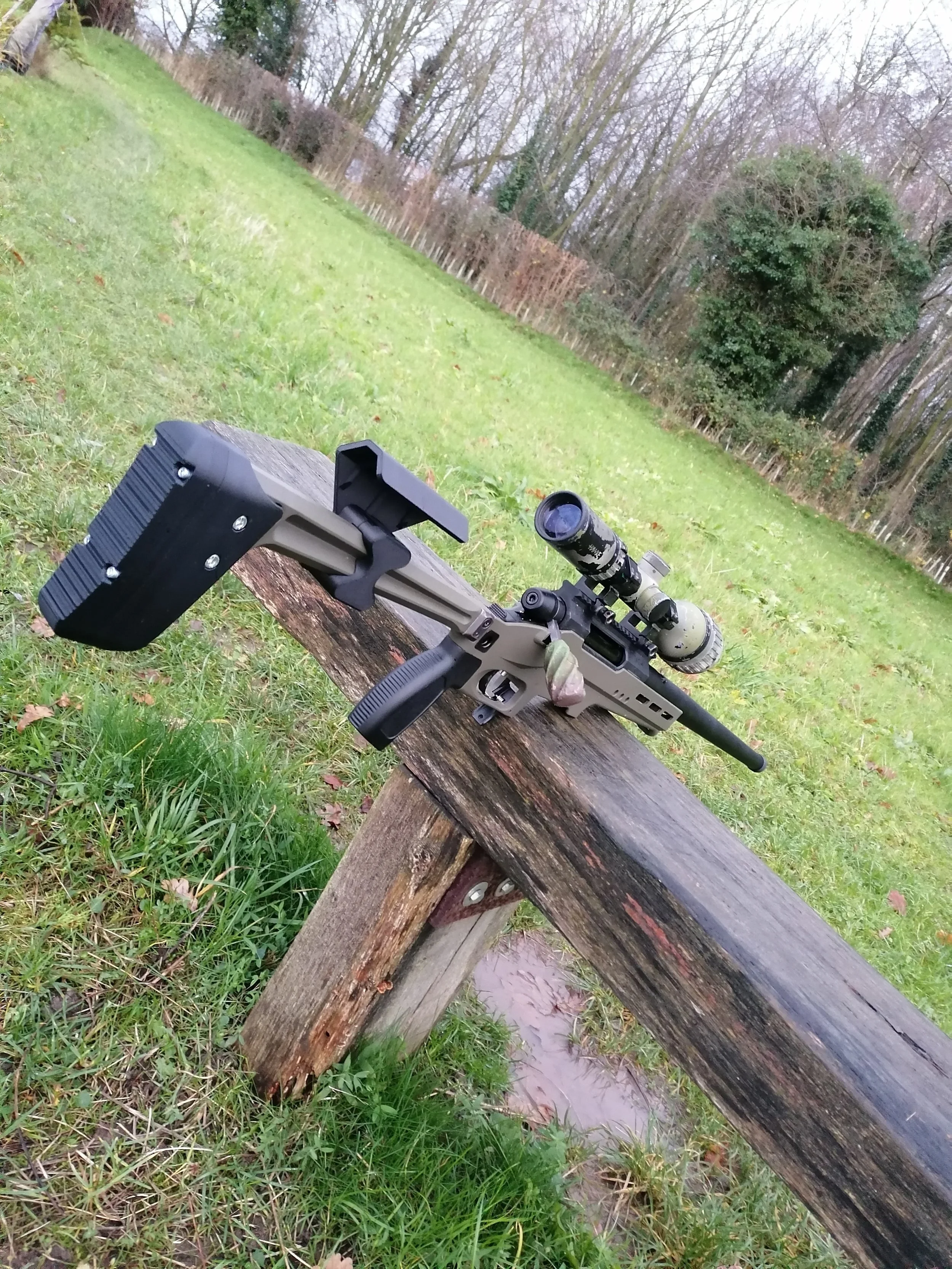

Select Comb Direction - Right Handed Comb is shown in the product images. Left handed is a mirror of the right hand part, just for left handed operators.
